TYPES OF GEAR AND SIZES BY ARROW GEAR

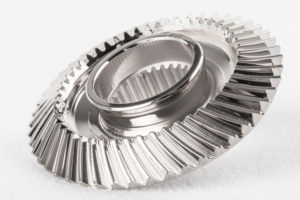

Spiral Bevel

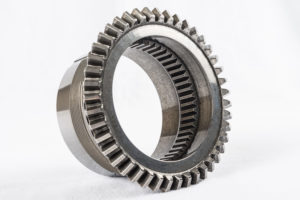

Zerol Bevel

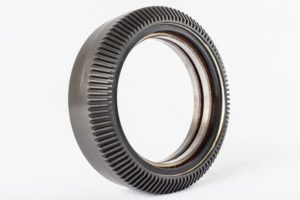

Straight Bevel

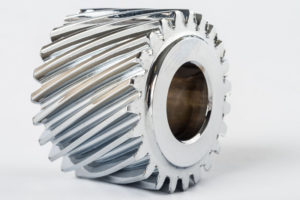

Helical

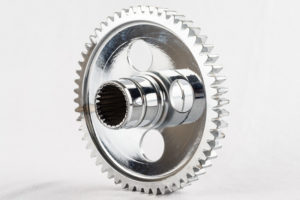

Spur

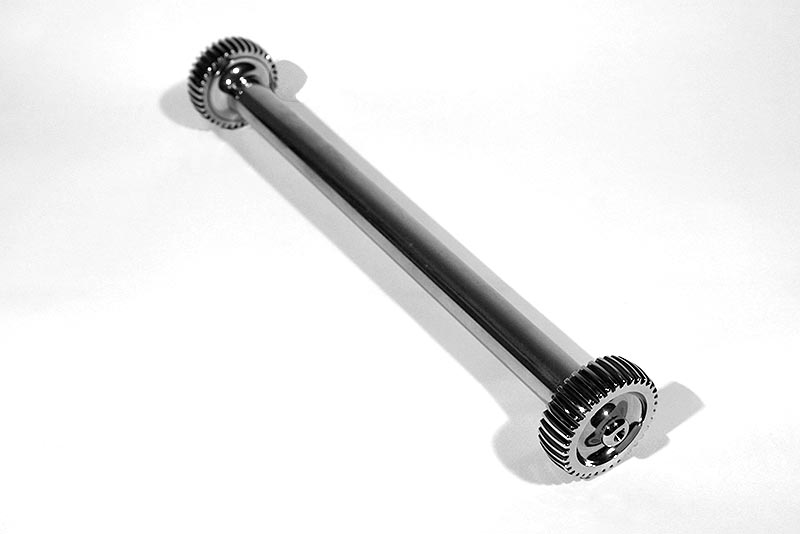

Spline Gear
Gear Sizes
Arrow is equipped for a full range of machining capabilities to meet customer needs. The following table outlines our gear range sizes and capabilities. For more information on our machining capabilities, please review our Equipment Section (PDF).
| Type of Gear | Max. Pitch Diameter | Diametral Pitch | Face Width | Unground Tooth | Ground Tooth |
|---|---|---|---|---|---|
| Spiral Bevel | 30" | 1.5 - 48 | 5.0 | AGMA 9* | AGMA 13 |
| Zerol® Bevel | 22" | 1.5 - 28 | 4.0 | AGMA 9* | AGMA 13 |
| Coniflex® Bevel | 28" | 2.5 - 48 | 6.0 | AGMA 9* | --- |
| Helical | 36" | 3.0 - 48 | 13.0 | AGMA 9 | AGMA 13 |
| Internal Spur/Spline | 32" | 3.6 - 48 | 8.0 | AGMA 9 | AGMA 13 |
| Spur | 36" | 3.0 - 48 | 13.0 | AGMA 9 | AGMA 13 |
| Spline | 36" | 4/8 - 80/160 | 13.0 | AGMA 9 | AGMA 13 |
* Some Configuration to AGMA Quality Number 10 (Lapped)
